Product Details for 3101-9779-144

Part Number: 3101-9779-144
Used on: Honda CR500
Cylinder Design: Single
Bore: 97.0
Stroke: 79.0
Rod: 144.0
Displacement: 583.8
Number of Cylinders: 1
Piston Number: 10723M09700
Wrist Pin Size: 21.0
To purchase this part click the button below to find a dealer.

Part Description

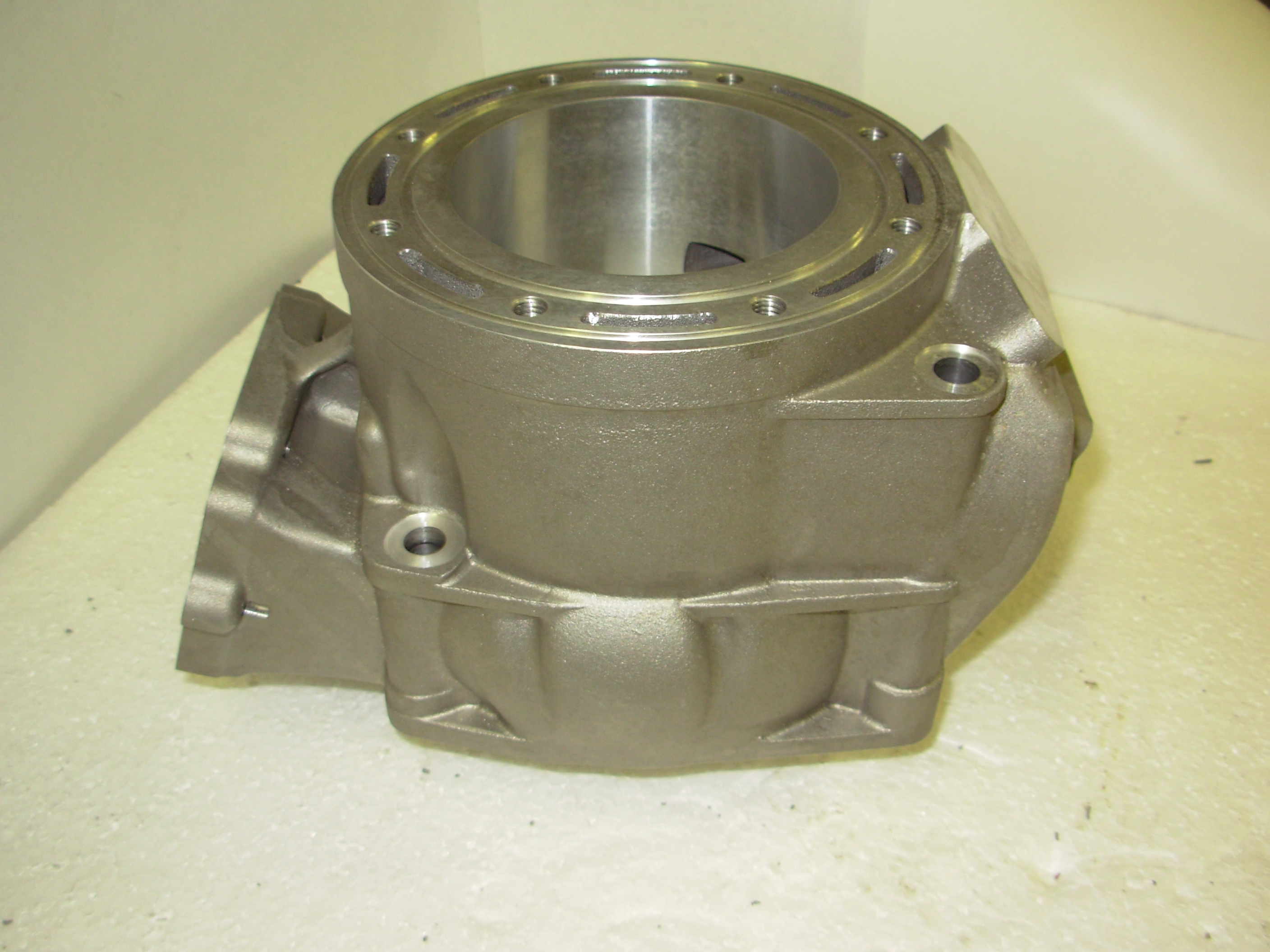

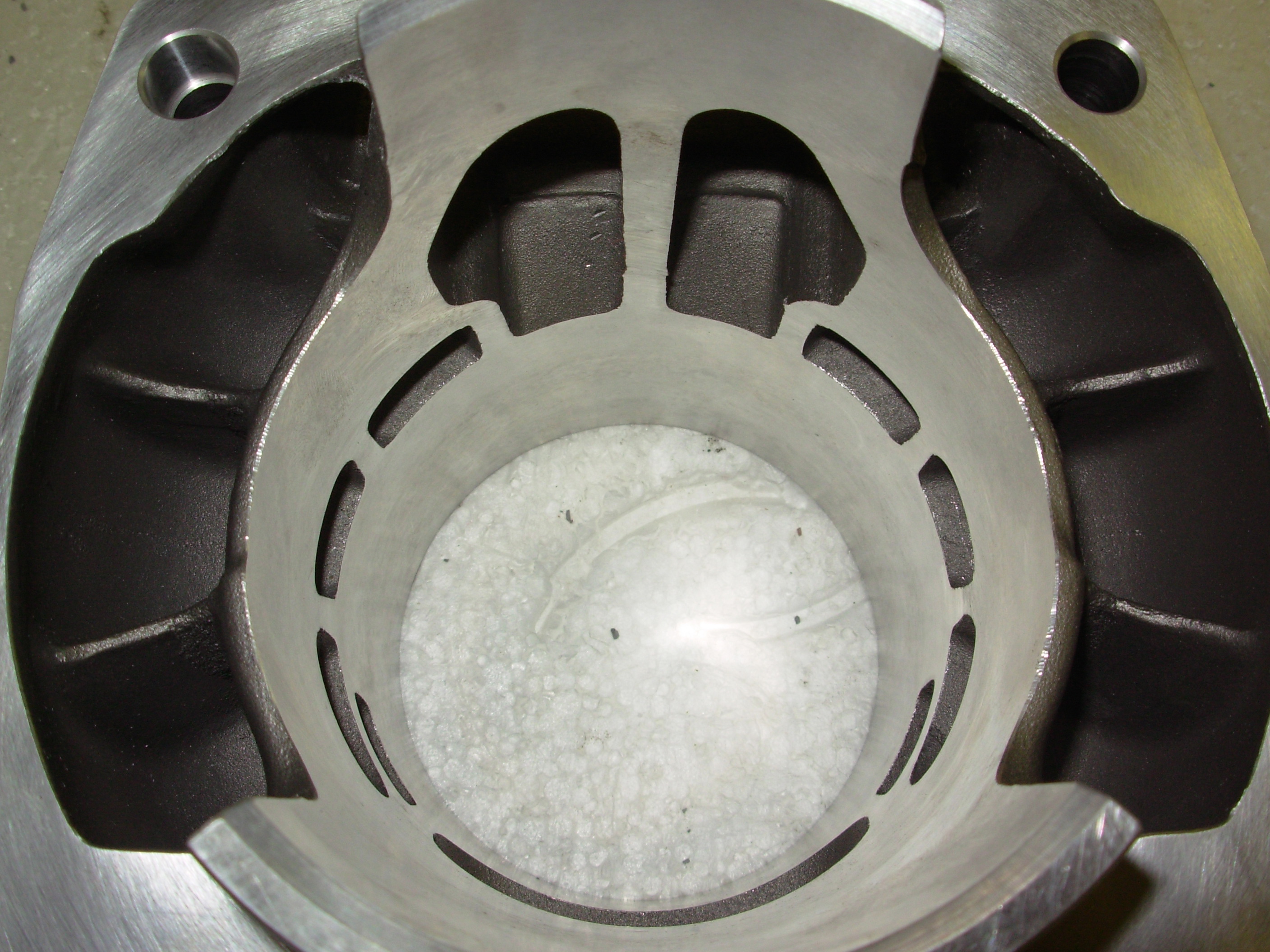

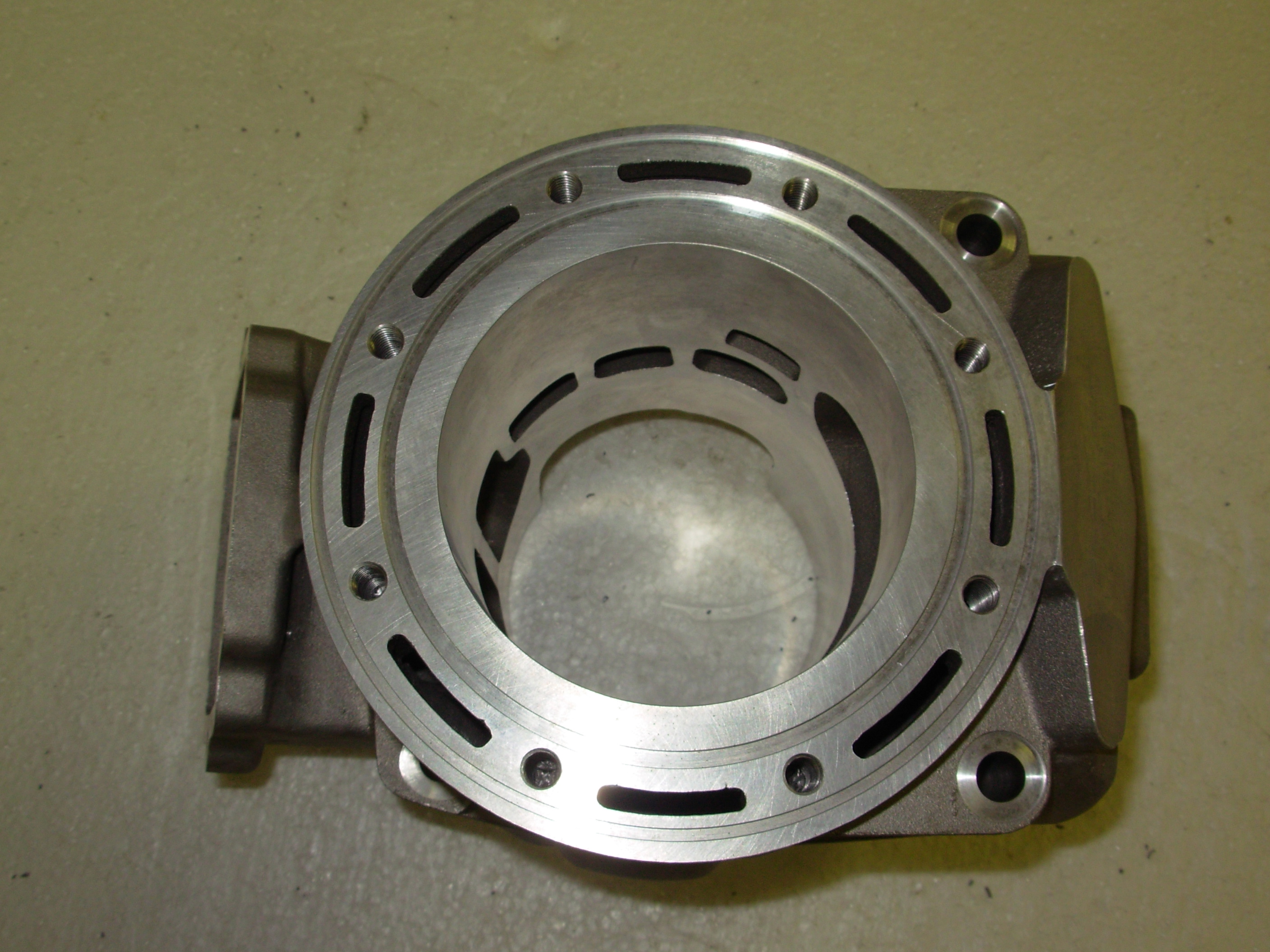

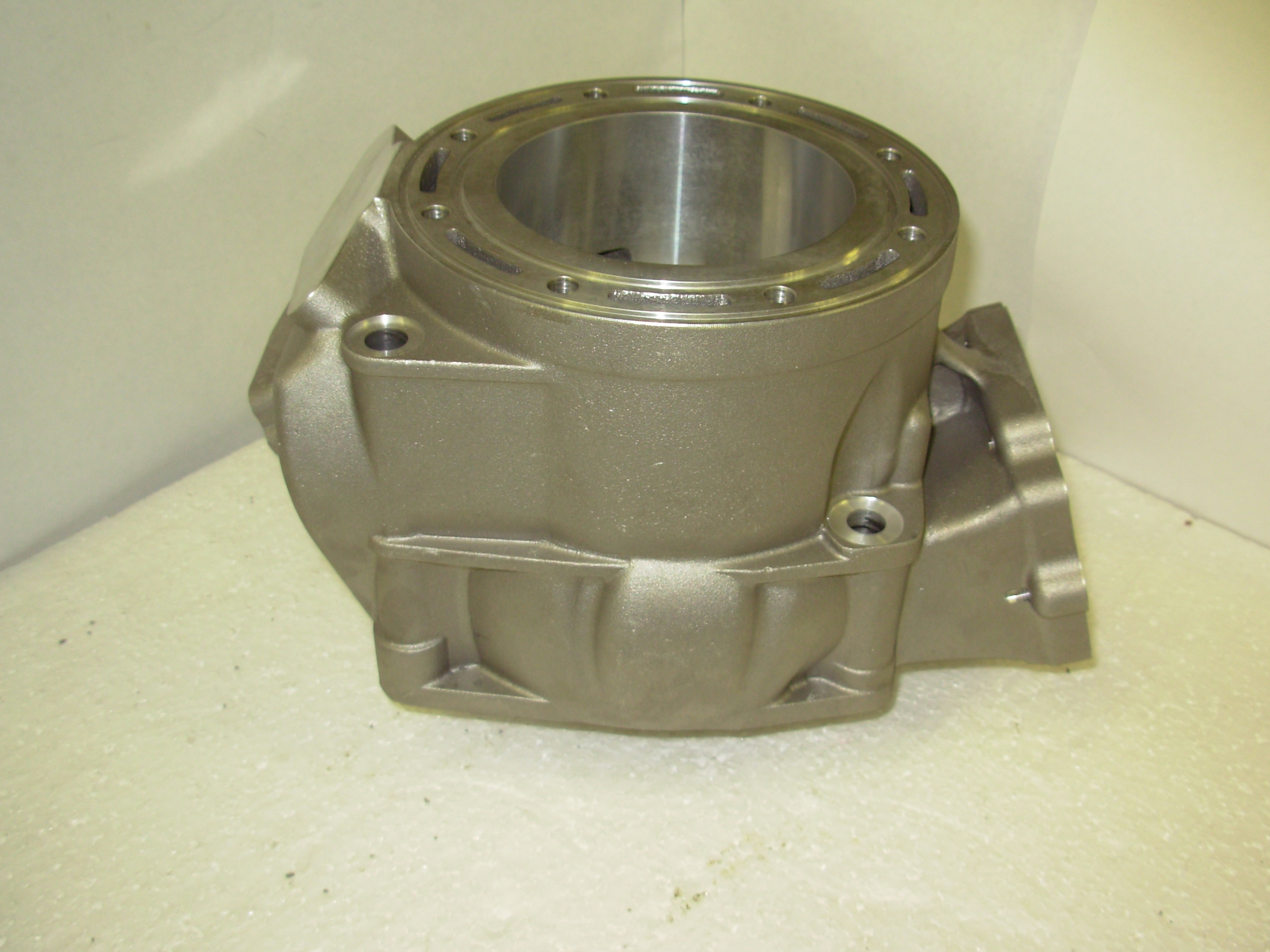

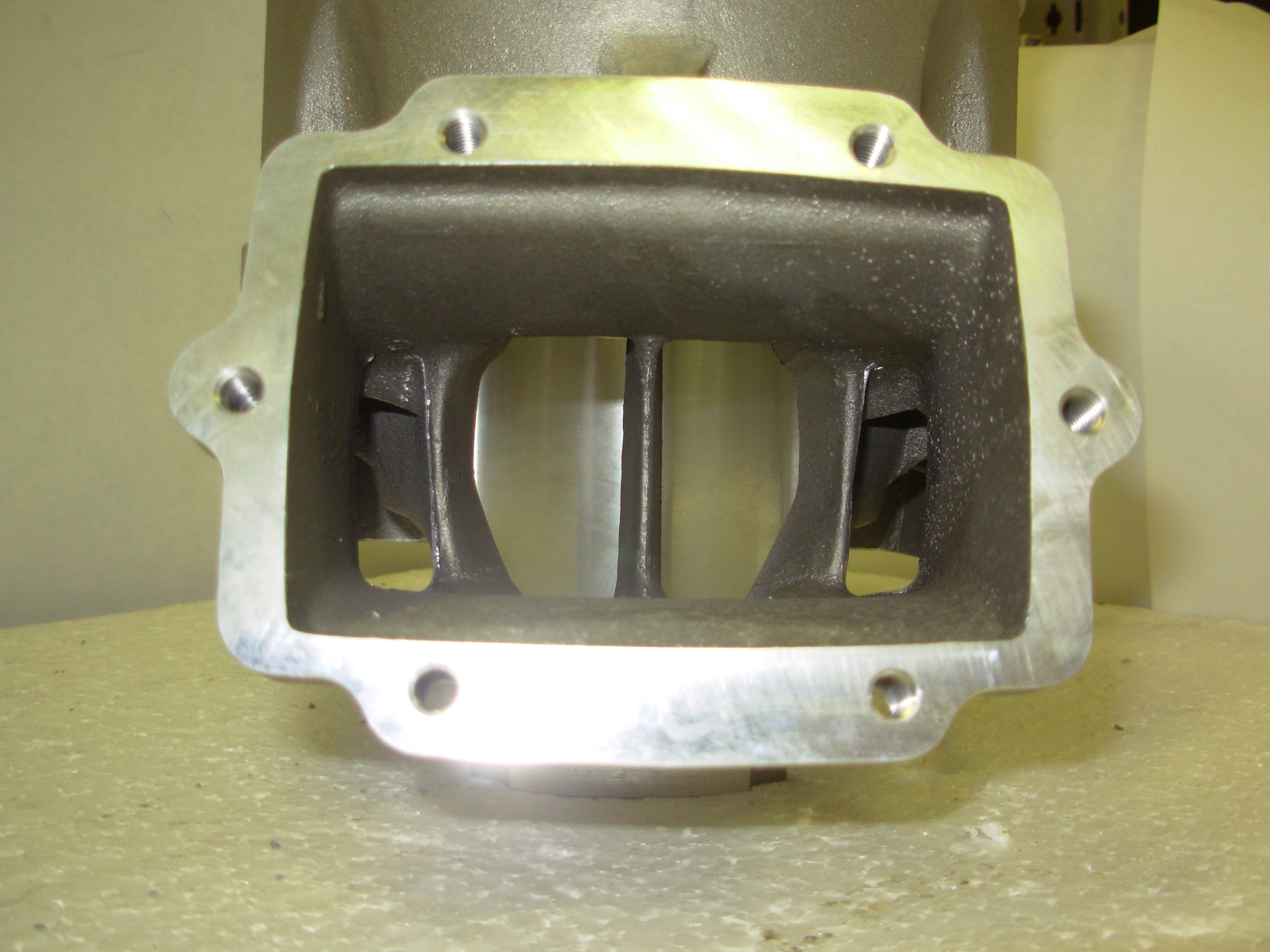

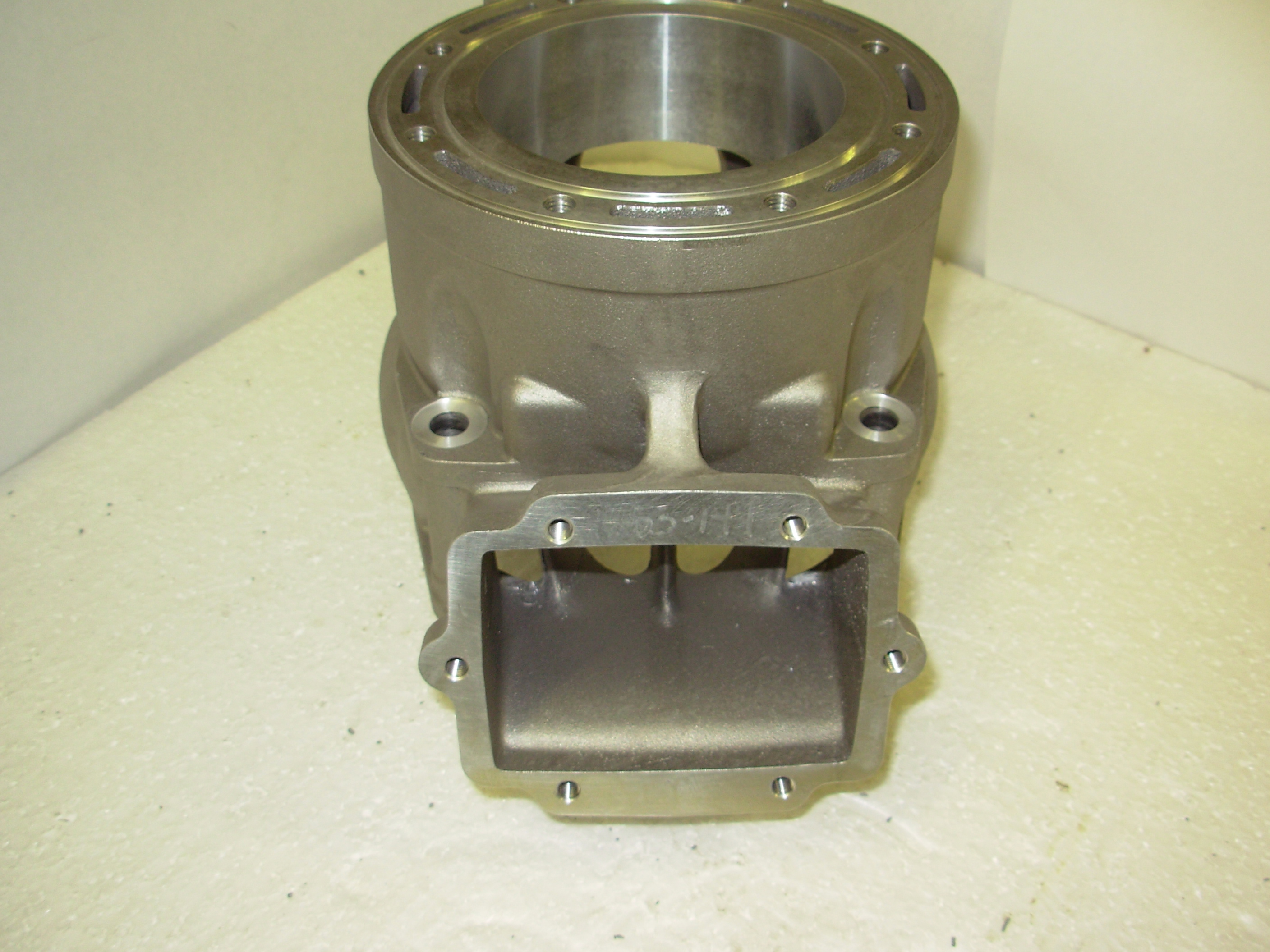

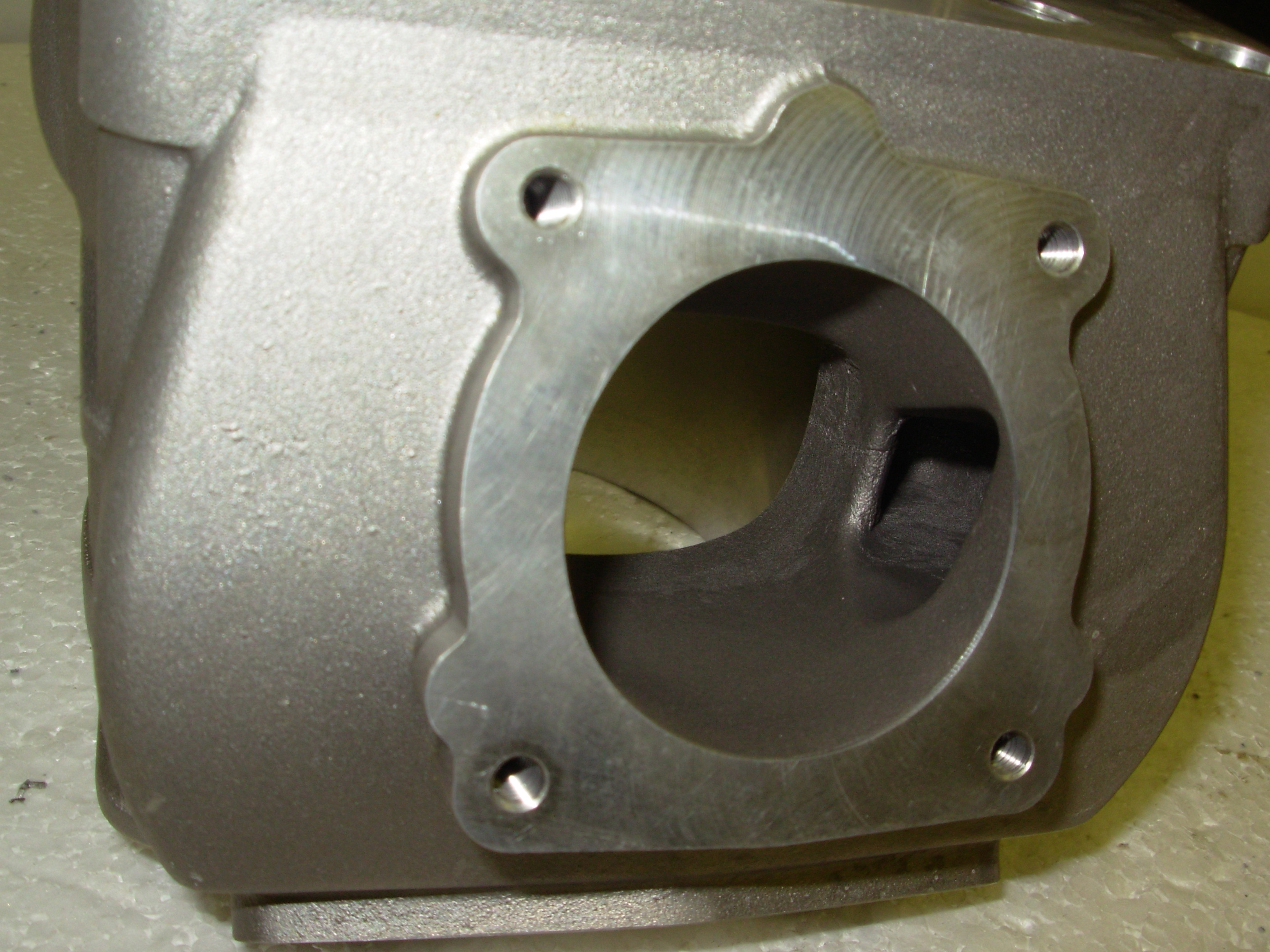

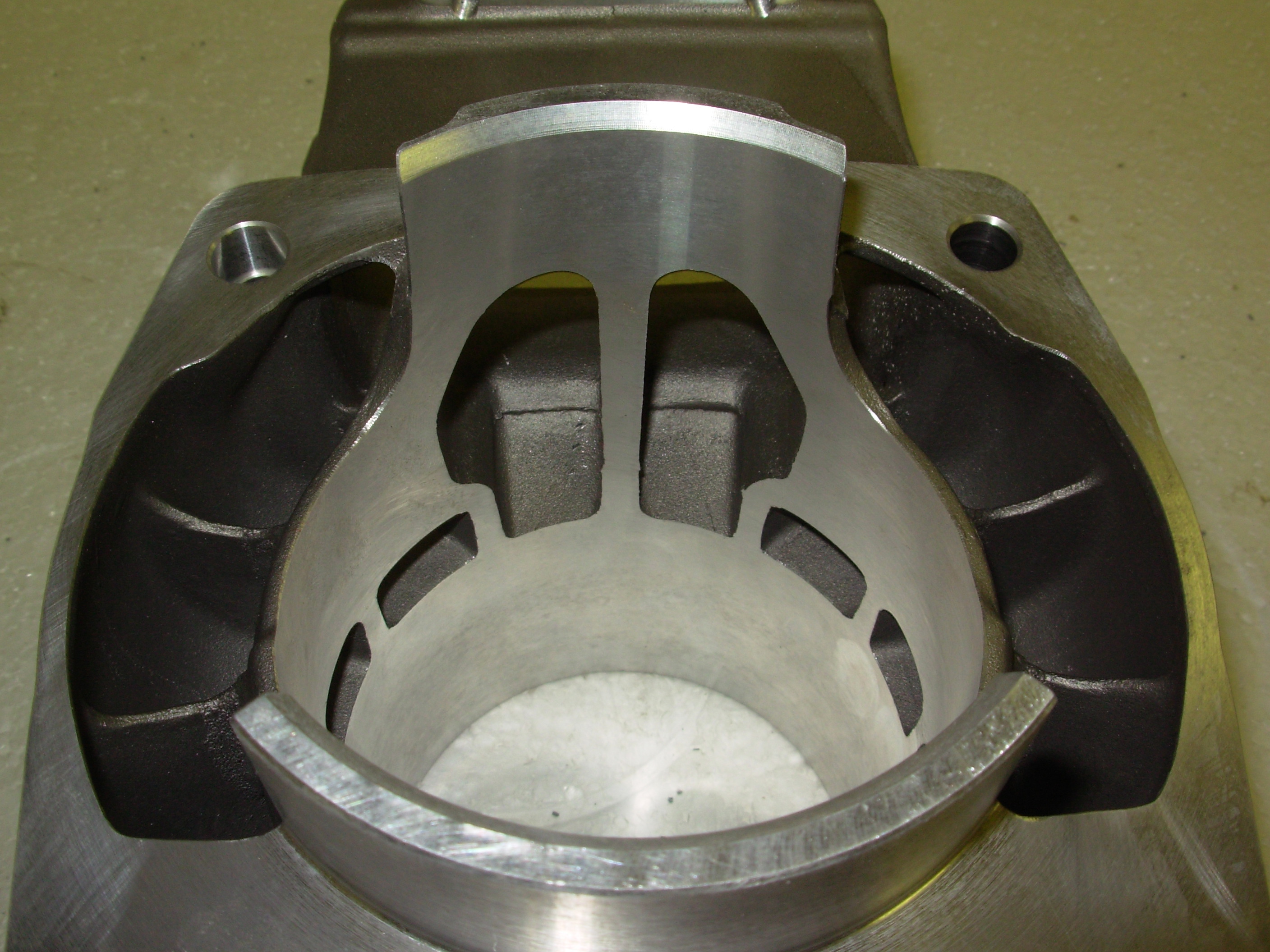

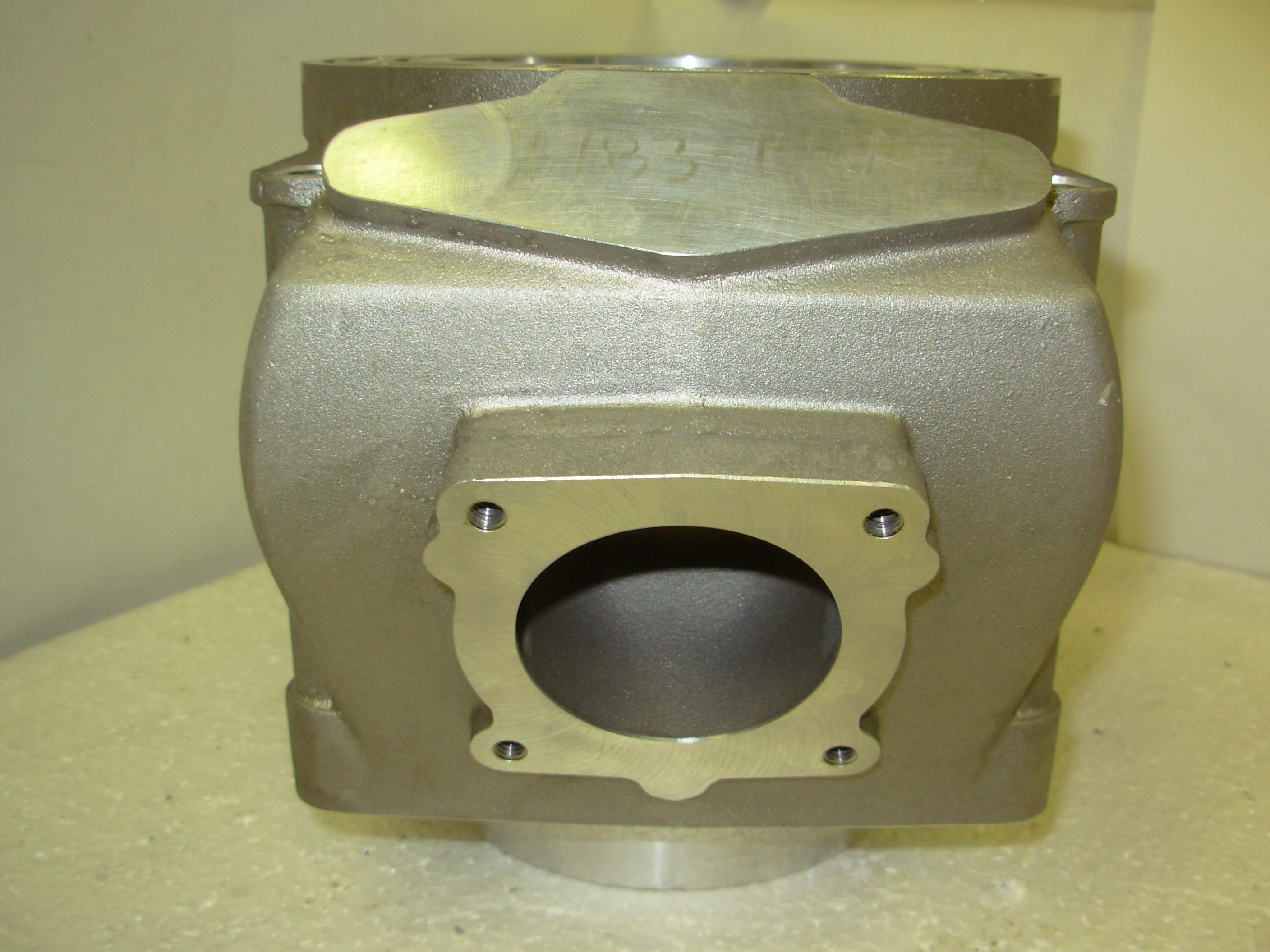

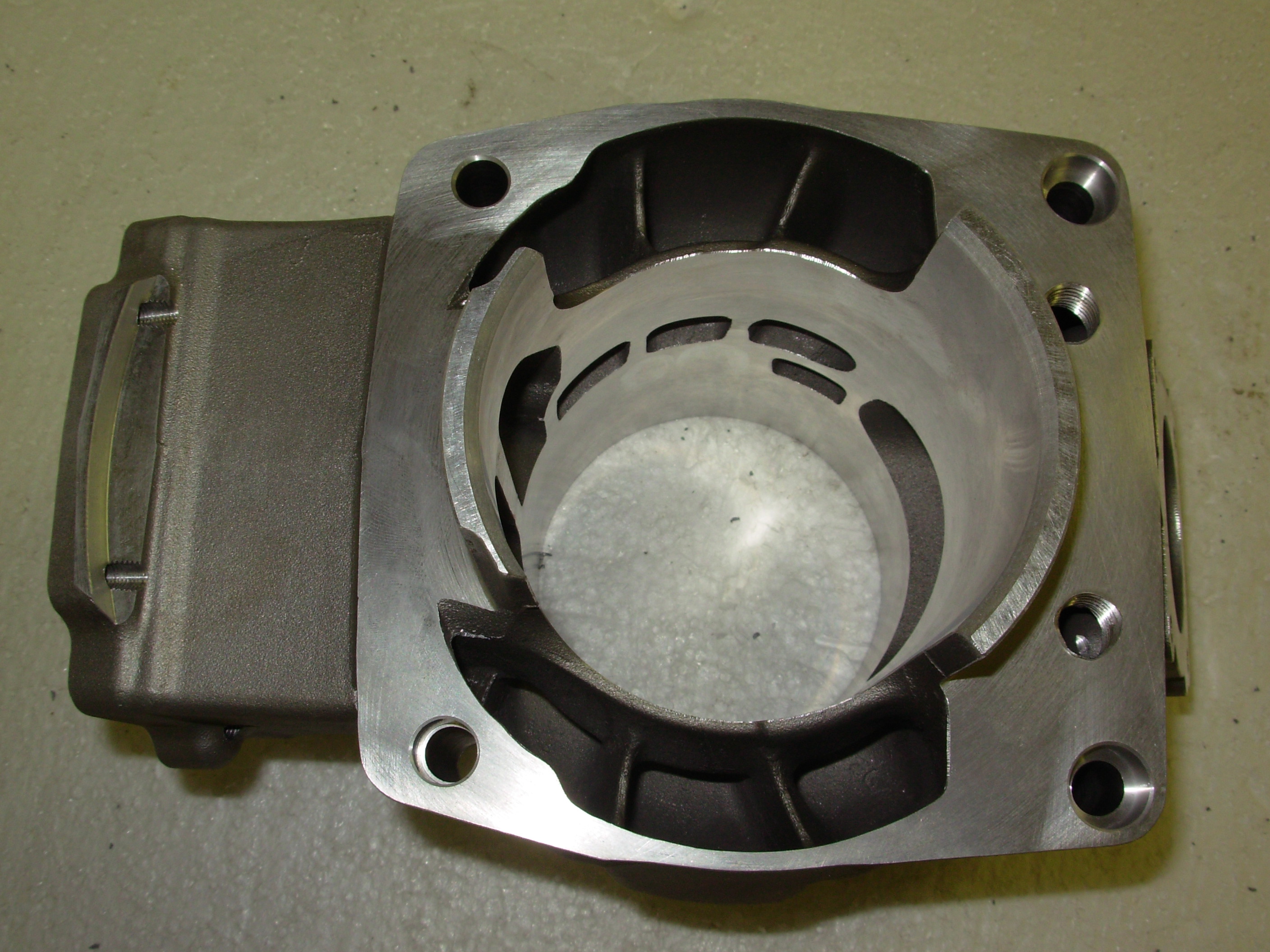

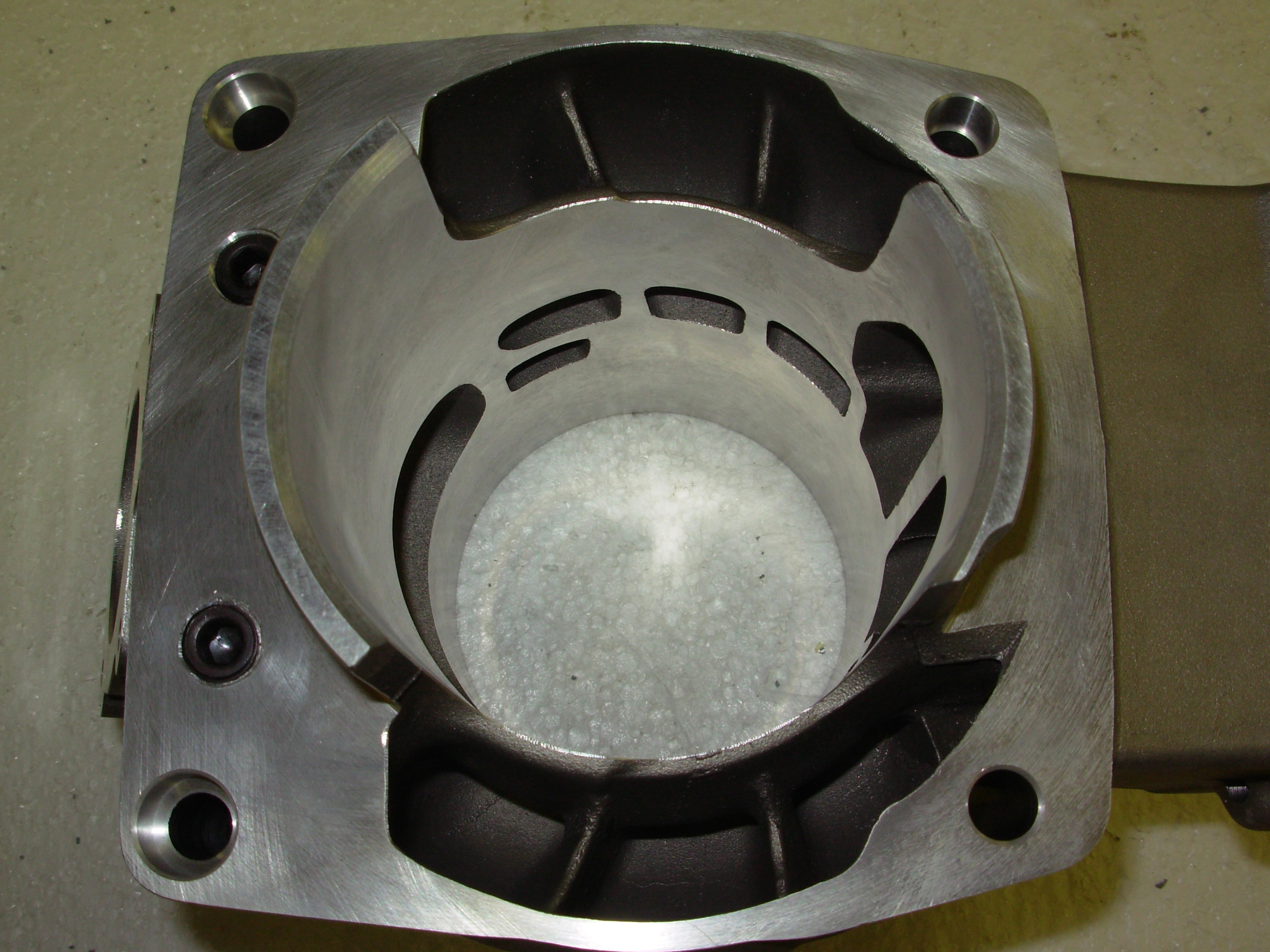

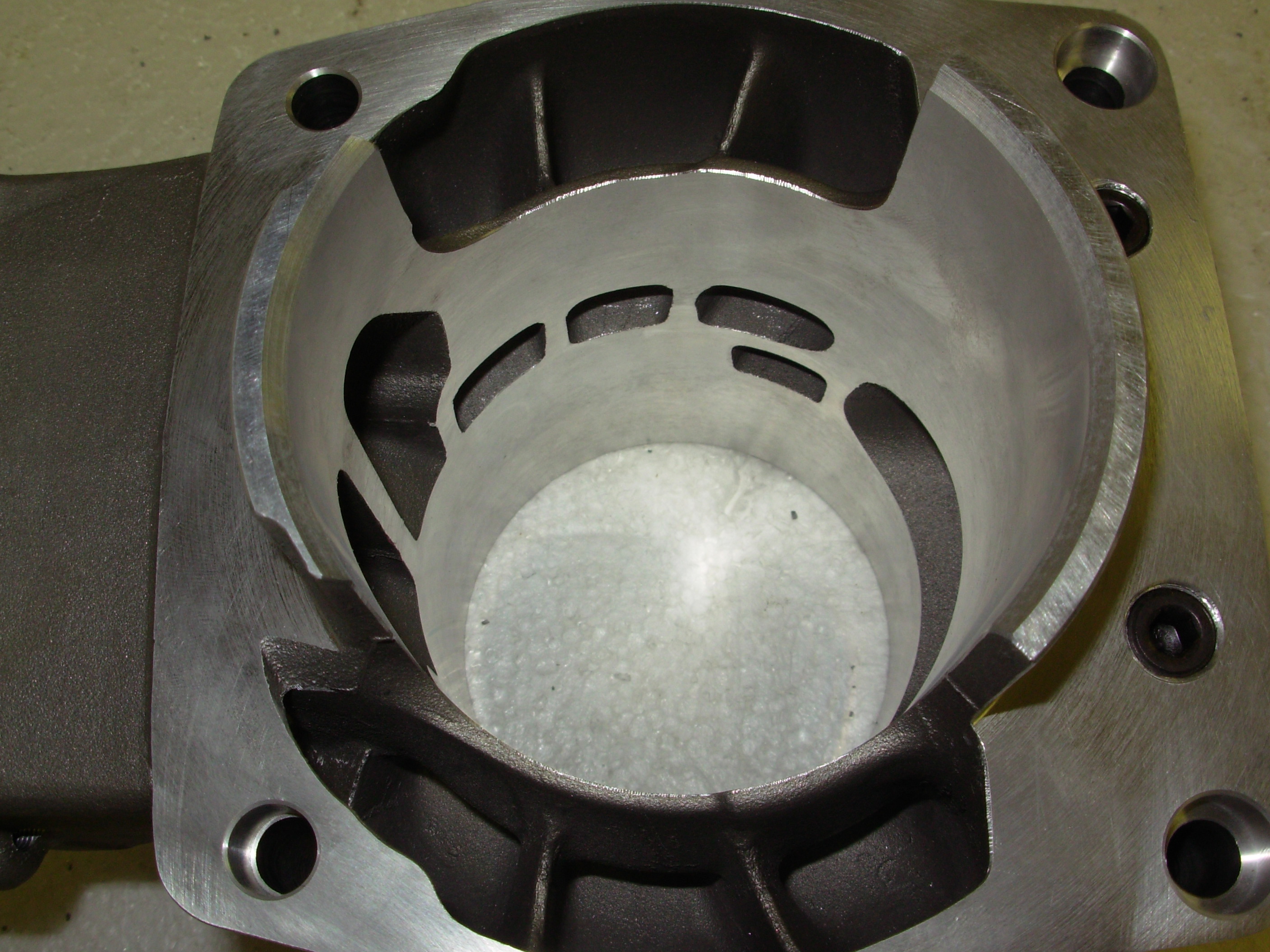

The "Liger" family of cylinders are our largest 2-stroke cylinders to date. We have started with a 95mm bore in this design, and as soon as the new larger pistons are available, we could see bores as large as 106mm from this design. The CR-Liger cylinders are designed to be used with a bolt-on adapter plate to minimize case modifications and still allow the transfer tunnel size to be increased and repositioned for optimum performance increases.

Pictures
