Product Info
Part Number: 9101-8268-125
Used on: Snow mobile Cylinders
Cylinder Design: Single
Bore: 82.0
Stroke: 68.0
Rod: 125.0
Displacement: 1077.3300384
Number of Cylinders: 3
Piston Number: 639M08200
Head Volume:
Wrist Pin Size 18.0
Base Gasket Thickness 0.02
Panther_logo_clear_normal

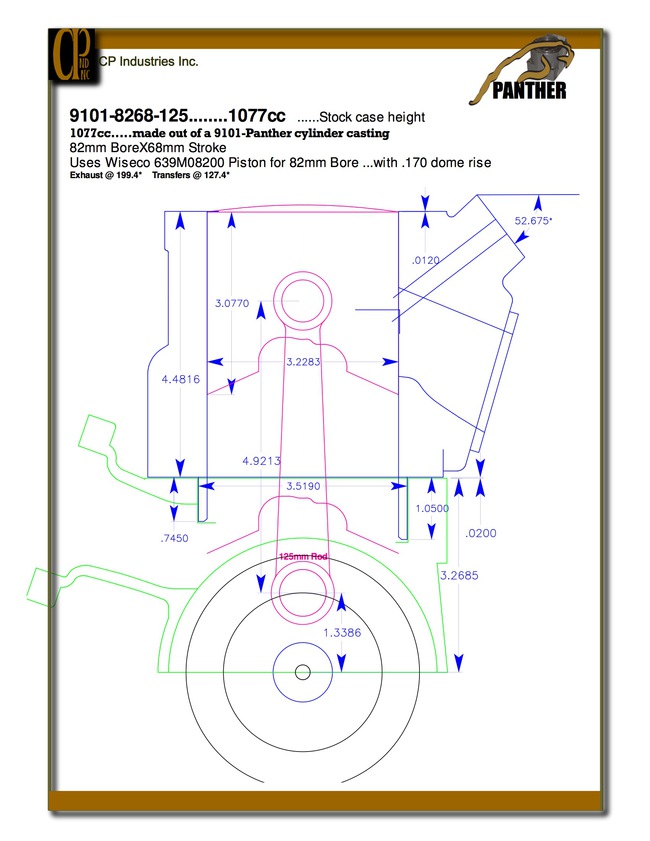

9101-8268-125 description

Pictures

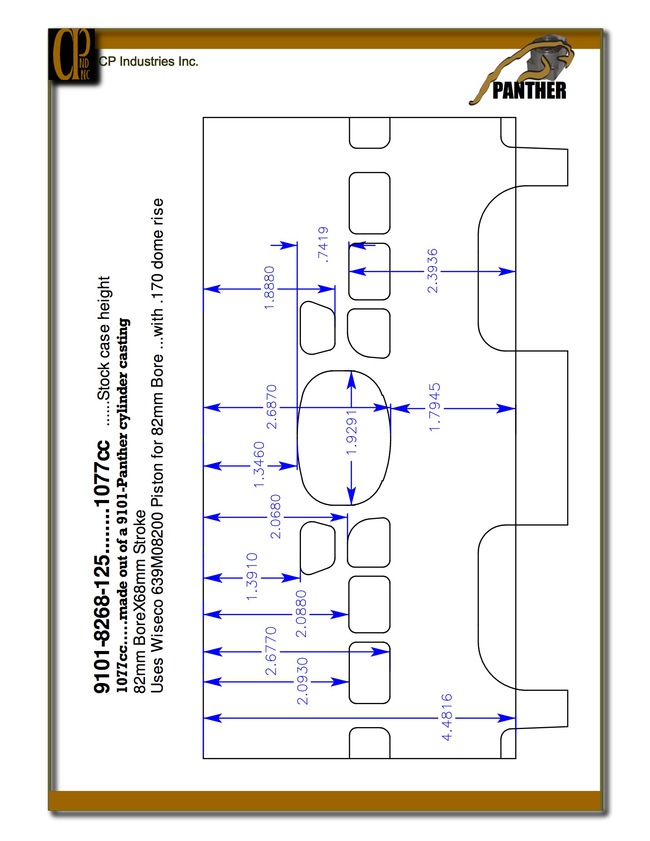

Port_layout_8268-125_thumbnail Side_view_of_overall_deck_on_8268-125_thumbnail Dscn1124_thumbnail Dscn1125_thumbnail Dscn1115_thumbnail Dscn1116_thumbnail Dscn1117_thumbnail Dscn1118_thumbnail Dscn1119_thumbnail Dscn1121_thumbnail Dscn1122_thumbnail Dscn1123_thumbnail Dscn1120_thumbnail Dscn1114_thumbnail Dscn1113_thumbnail Dscn1112_thumbnail Dscn1111_thumbnail
