Product Info
Part Number: 9101-7871-125
Used on: Snow mobile Cylinders
Cylinder Design: Single
Bore: 78.0
Stroke: 71.0
Rod: 125.0
Displacement: 1017.7935768
Number of Cylinders: 3
Piston Number: 2379M07800
Head Volume:
Wrist Pin Size 18.0
Base Gasket Thickness 0.02
9101-7871-125 description

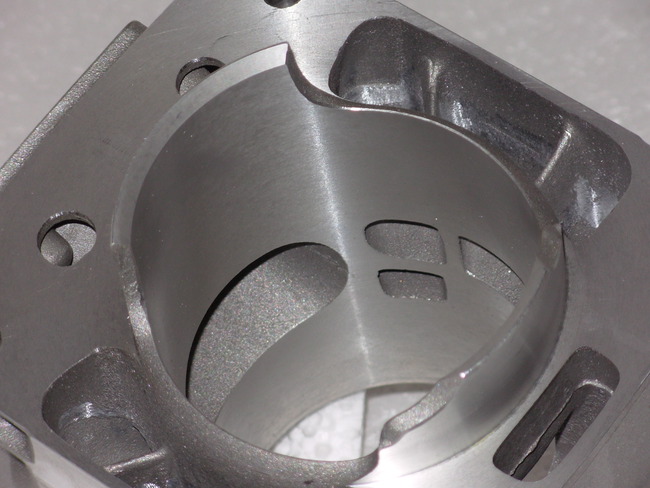

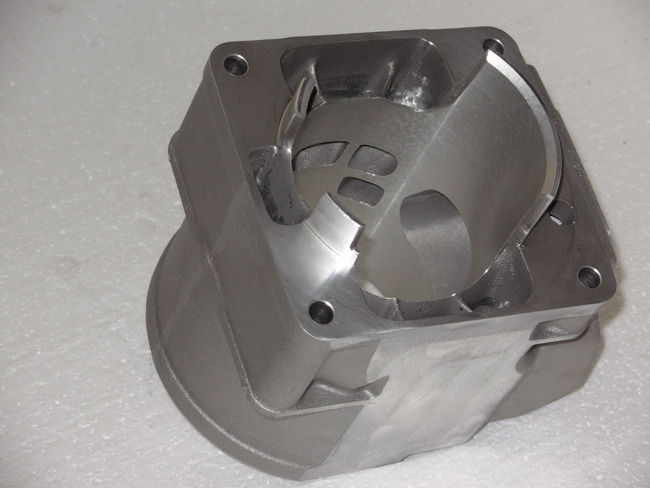

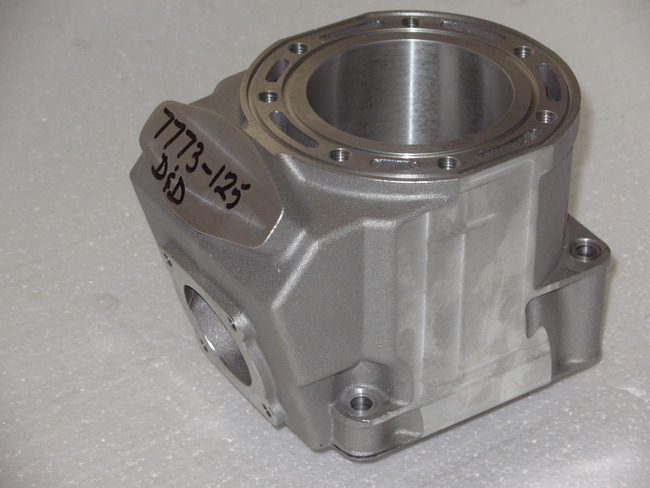

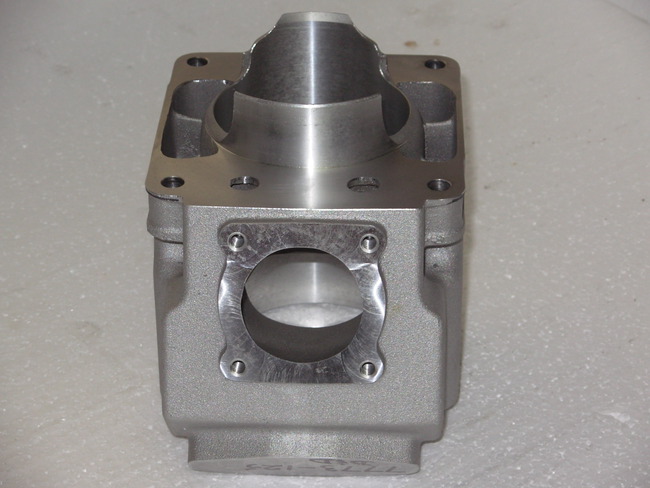

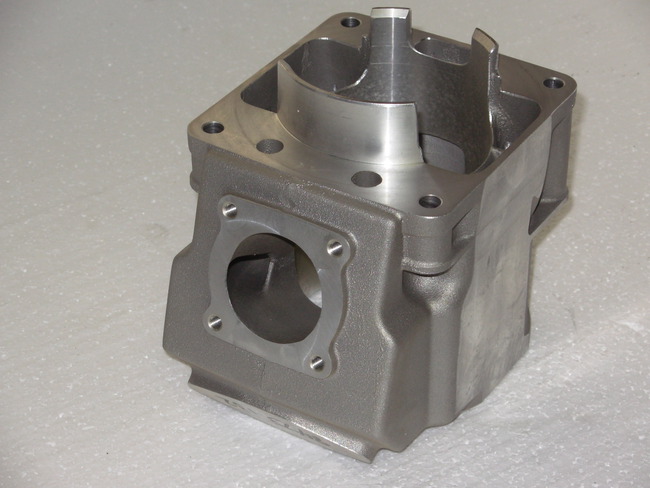

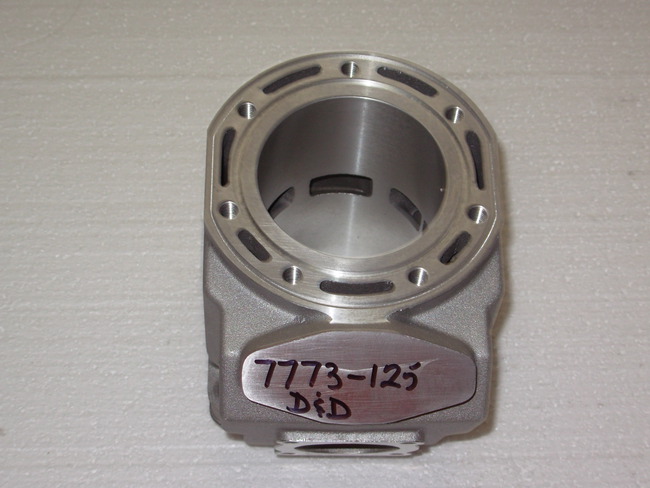

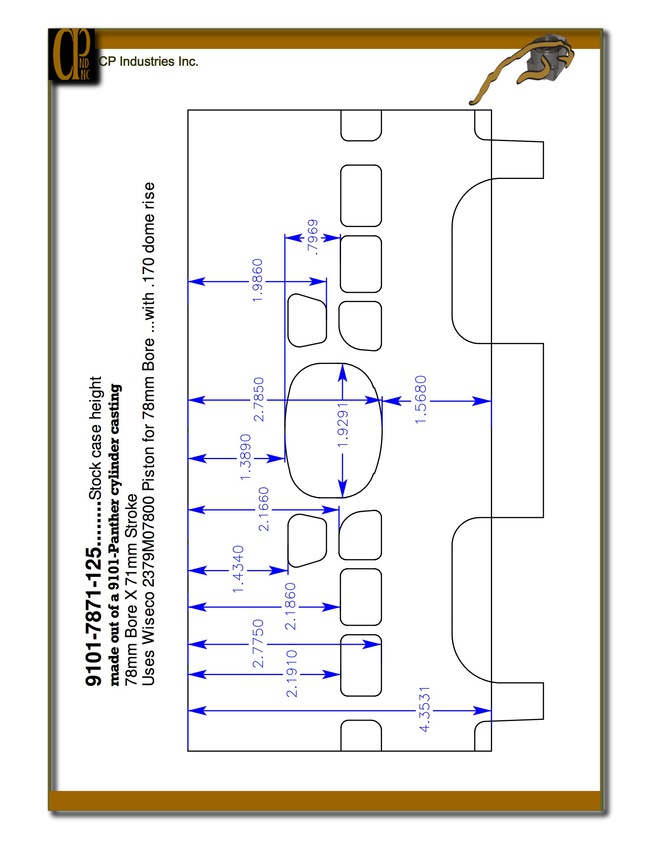

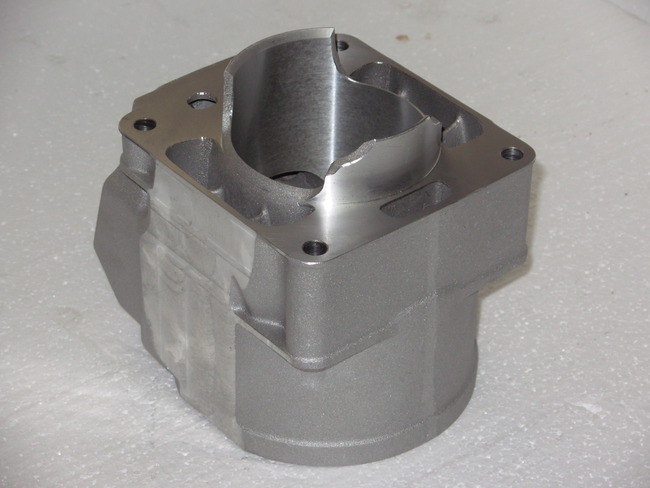

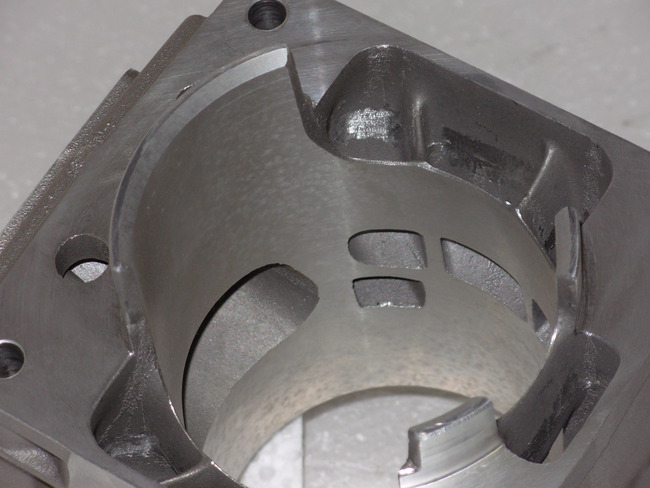

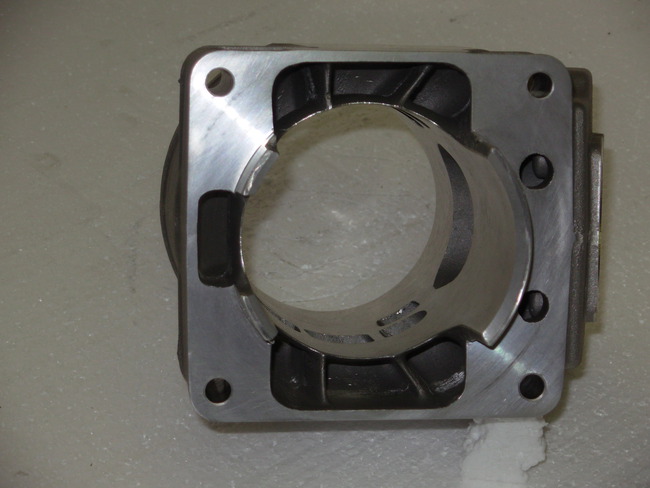

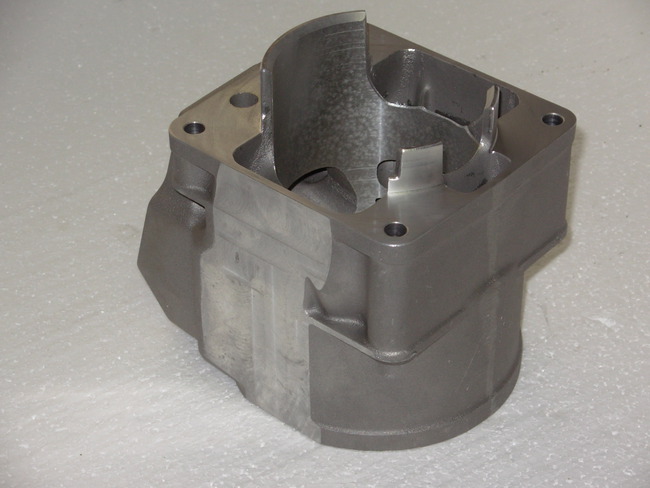

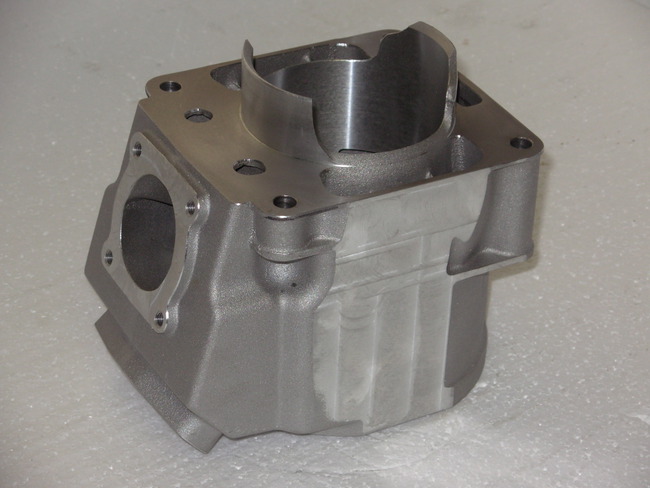

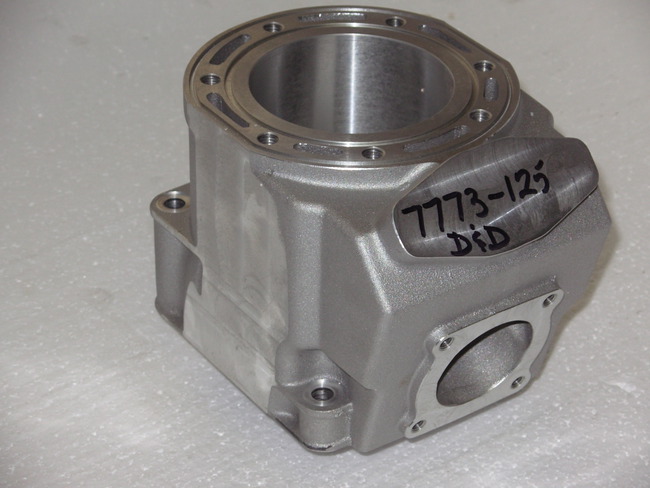

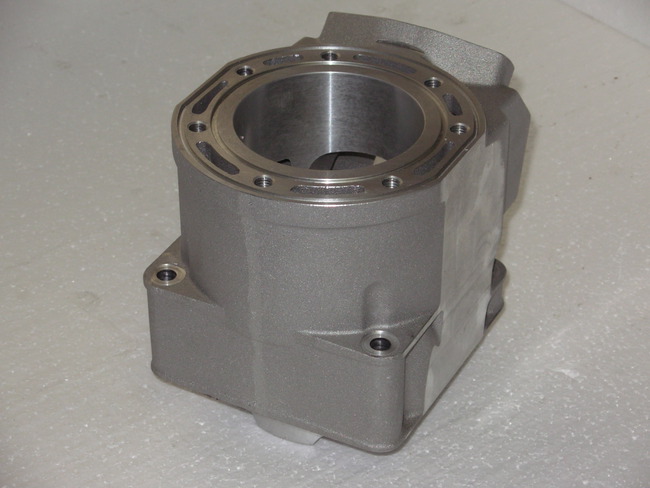

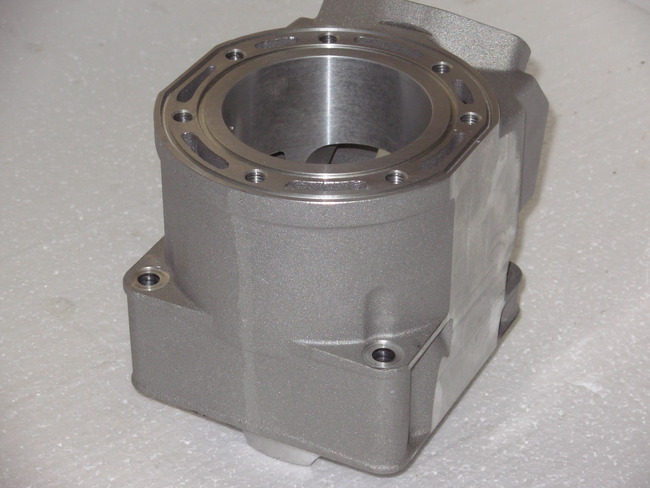

Port_layout_7871-125_thumbnail Side_view_of_overall_deck_on_7871-125_thumbnail Dscn1124_thumbnail Dscn1125_thumbnail Dscn1115_thumbnail Dscn1116_thumbnail Dscn1117_thumbnail Dscn1118_thumbnail Dscn1119_thumbnail Dscn1121_thumbnail Dscn1122_thumbnail Dscn1123_thumbnail Dscn1120_thumbnail Dscn1114_thumbnail Dscn1113_thumbnail Dscn1112_thumbnail Dscn1111_thumbnail
