Product Info
Part Number: CPI-6554
Used on: Yamaha Banshee
Cylinder Design: Mono-block Twin
Bore: 65.0
Stroke: 54.0
Rod: 110.0
Displacement: 358.37802
Number of Cylinders: 2
Piston Number: 513M06500
Head Volume:
Wrist Pin Size 16.0
Base Gasket Thickness 0.022
Cheetah_cub_logo_normal
CPI-6554 description

Our smallest special order Cheetah Cub for the ""350cc class"" where the class does not allow any overbores, and uses the stock stroke crank. Even our smallest Cub cylinders use the performance proven Cheetah 11 port cylinder design.

Pictures

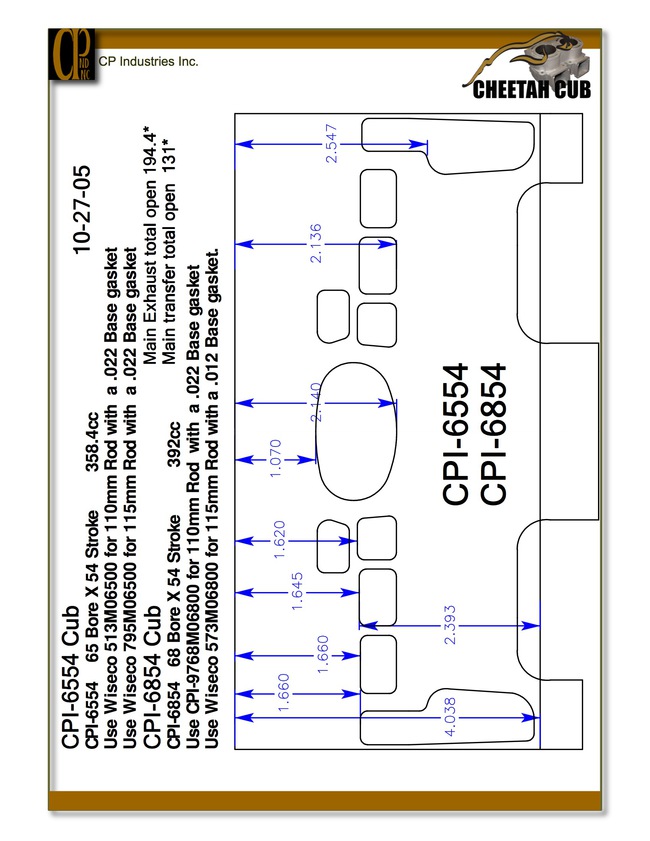

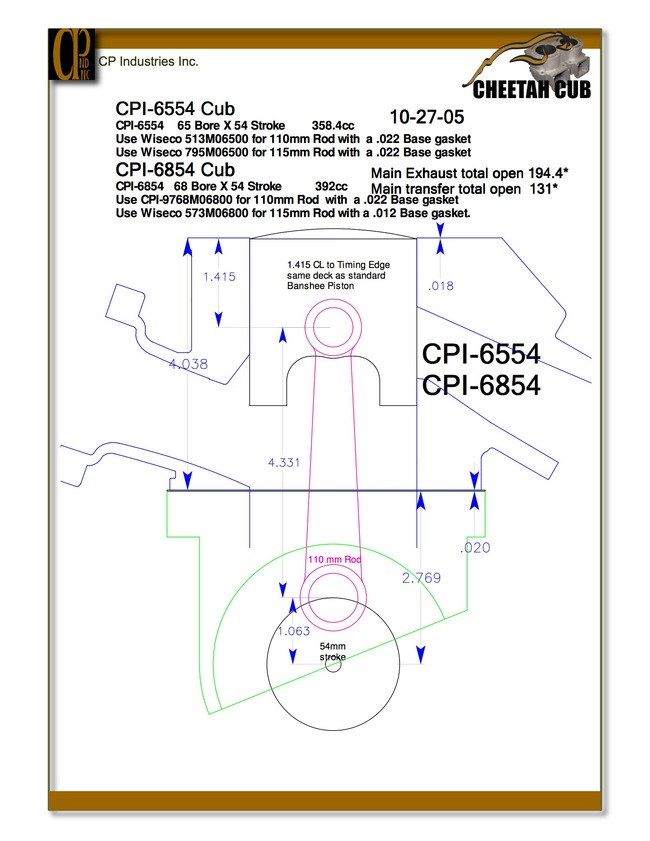

Portmap_6554_thumbnail Sideview_6554_thumbnail Cheetah_cub_001_thumbnail Cheetah_cub_002_thumbnail Cheetah_cub_003_thumbnail Cheetah_cub_004_thumbnail Cheetah_cub_005_thumbnail Cheetah_cub_006_thumbnail Cheetah_cub_006_thumbnail Cheetah_cub_007_thumbnail Cheetah_cub_008_thumbnail Cheetah_cub_009_thumbnail Cheetah_cub_010_thumbnail Cheetah_cub_011_thumbnail Cheetah_cub_012_thumbnail Cheetah_cub_013_thumbnail Cheetah_cub_013_thumbnail Cheetah_cub_014_thumbnail Cheetah_cub_015_thumbnail Cheetah_cub_016_thumbnail Cheetah_cub_017_thumbnail Cheetah_cub_018_thumbnail Cheetah_cub_019_thumbnail Cheetah_cub_020_thumbnail Cheetah_cub_021_thumbnail Cheetah_cub_022_thumbnail Cheetah_cub_023_thumbnail Cheetah_cub_024_thumbnail Cheetah_cub_025_thumbnail Cheetah_cub_026_thumbnail Cheetah_cub_027_thumbnail Cheetah_cub_028_thumbnail Cheetah_cub_029_thumbnail Cheetah_cub_030_thumbnail Cheetah_cub_031_thumbnail Cheetah_cub_032_thumbnail Cheetah_cub_033_thumbnail Cheetah_cub_034_thumbnail Cheetah_cub_035_thumbnail Cheetah_cub_036_thumbnail Cheetah_cub_037_thumbnail Cheetah_cub_038_thumbnail Cheetah_cub_039_thumbnail Cheetah_cub_040_thumbnail Cheetah_cub_041_thumbnail Cheetah_cub_042_thumbnail
