Product Info
Part Number: CPI-6864LR
Used on: Yamaha Banshee
Cylinder Design: Mono-block Twin
Bore: 68.0
Stroke: 64.0
Rod: 120.0
Displacement: 464.8562688
Number of Cylinders: 2
Piston Number: 832M06800
Head Volume:
Wrist Pin Size 18.0
Base Gasket Thickness 0.012
Cheetah_cub_logo_normal
CPI-6864LR description

Pictures

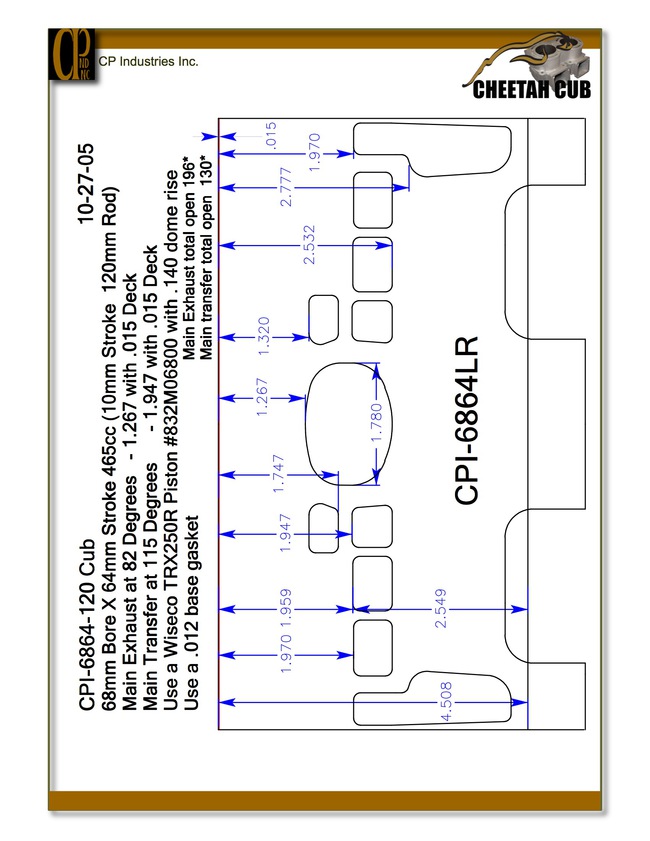

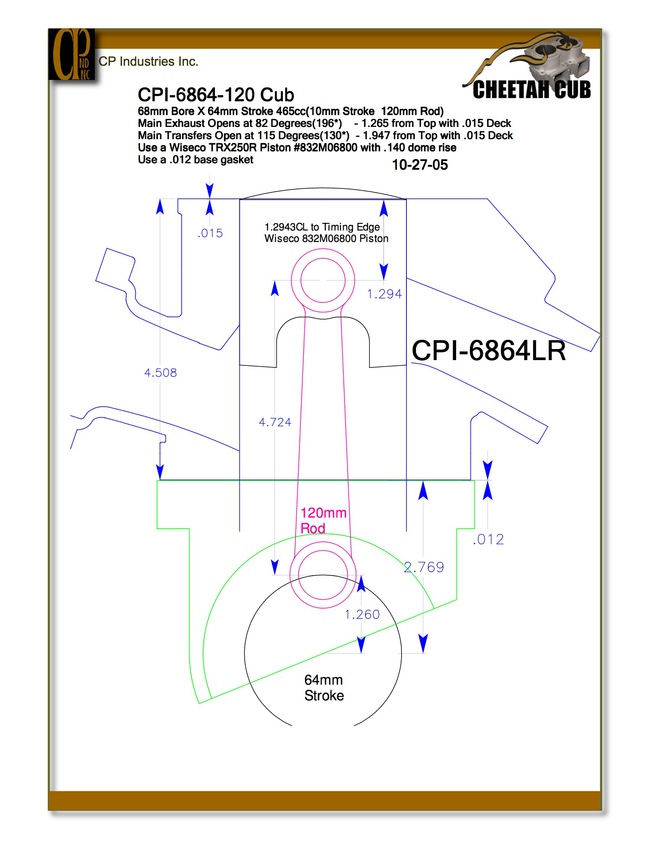

Portmap_6864-120_thumbnail Sideview_6864-120_thumbnail Cheetah_cub_001_thumbnail Cheetah_cub_002_thumbnail Cheetah_cub_003_thumbnail Cheetah_cub_004_thumbnail Cheetah_cub_005_thumbnail Cheetah_cub_006_thumbnail Cheetah_cub_006_thumbnail Cheetah_cub_007_thumbnail Cheetah_cub_008_thumbnail Cheetah_cub_009_thumbnail Cheetah_cub_010_thumbnail Cheetah_cub_011_thumbnail Cheetah_cub_012_thumbnail Cheetah_cub_013_thumbnail Cheetah_cub_013_thumbnail Cheetah_cub_014_thumbnail Cheetah_cub_015_thumbnail Cheetah_cub_016_thumbnail Cheetah_cub_017_thumbnail Cheetah_cub_018_thumbnail Cheetah_cub_019_thumbnail Cheetah_cub_020_thumbnail Cheetah_cub_021_thumbnail Cheetah_cub_022_thumbnail Cheetah_cub_023_thumbnail Cheetah_cub_024_thumbnail Cheetah_cub_025_thumbnail Cheetah_cub_026_thumbnail Cheetah_cub_027_thumbnail Cheetah_cub_028_thumbnail Cheetah_cub_029_thumbnail Cheetah_cub_030_thumbnail Cheetah_cub_031_thumbnail Cheetah_cub_032_thumbnail Cheetah_cub_033_thumbnail Cheetah_cub_034_thumbnail Cheetah_cub_035_thumbnail Cheetah_cub_036_thumbnail Cheetah_cub_037_thumbnail Cheetah_cub_038_thumbnail Cheetah_cub_039_thumbnail Cheetah_cub_040_thumbnail Cheetah_cub_041_thumbnail Cheetah_cub_042_thumbnail
