Product Info
Part Number: 3101-9779-144
Used on: Honda CR500
Cylinder Design: Single
Bore: 97.0
Stroke: 79.0
Rod: 144.0
Displacement: 583.7964594
Number of Cylinders: 1
Piston Number: 10723M09700
Head Volume: 0.0
Wrist Pin Size 21.0
Base Gasket Thickness 0.02

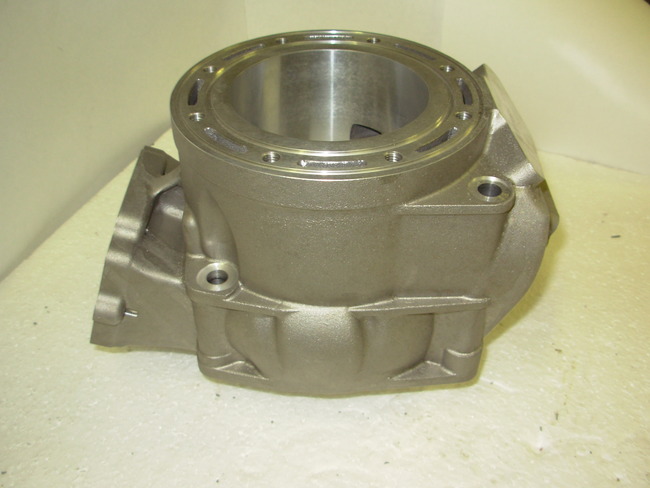

Pictures_of_the_liger_002_normal
3101-9779-144 description

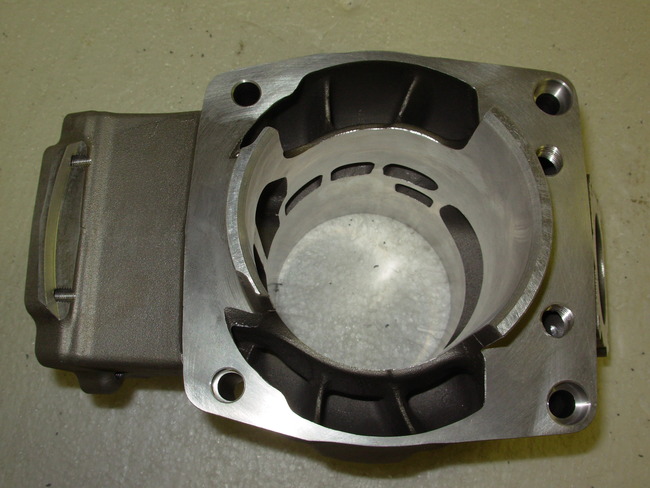

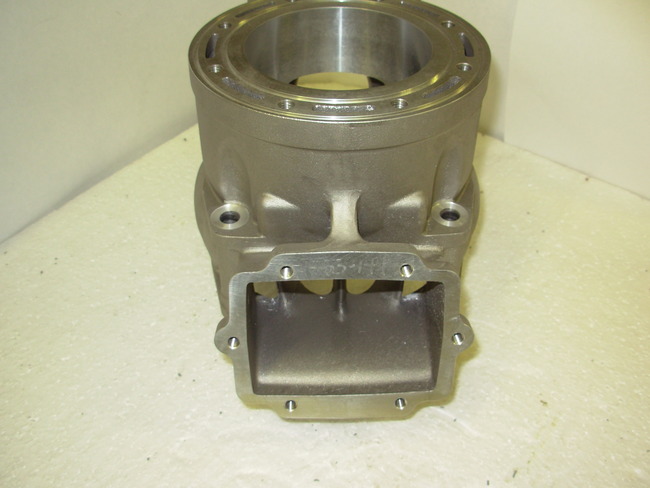

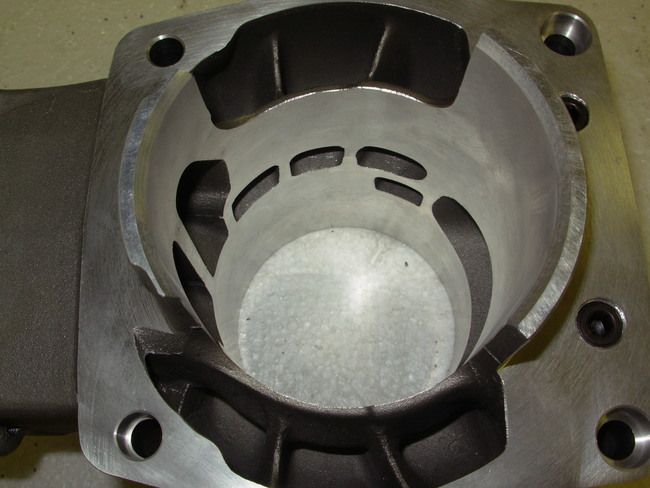

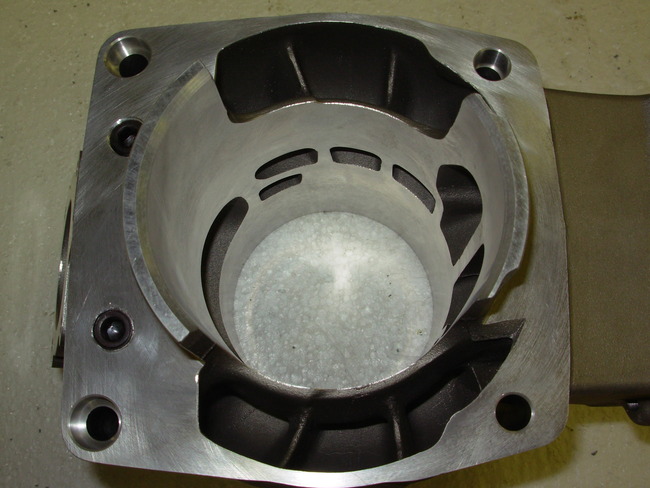

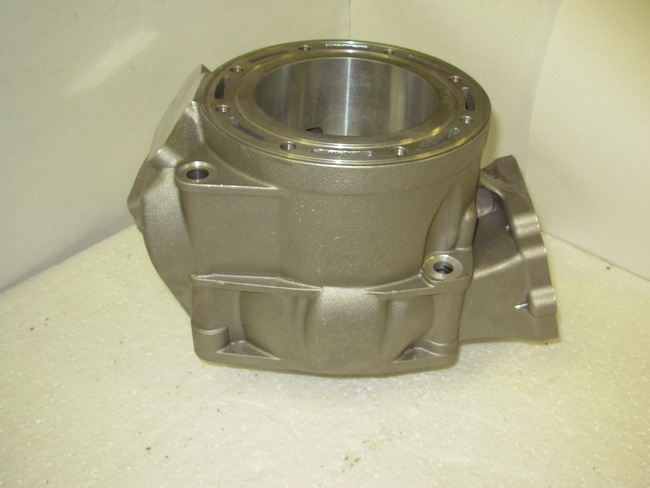

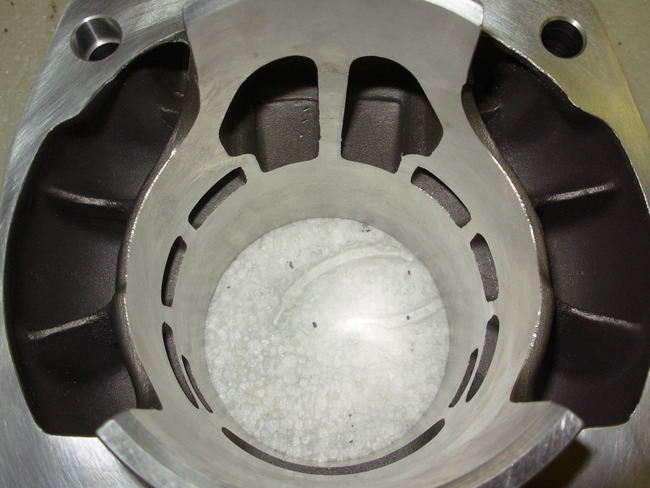

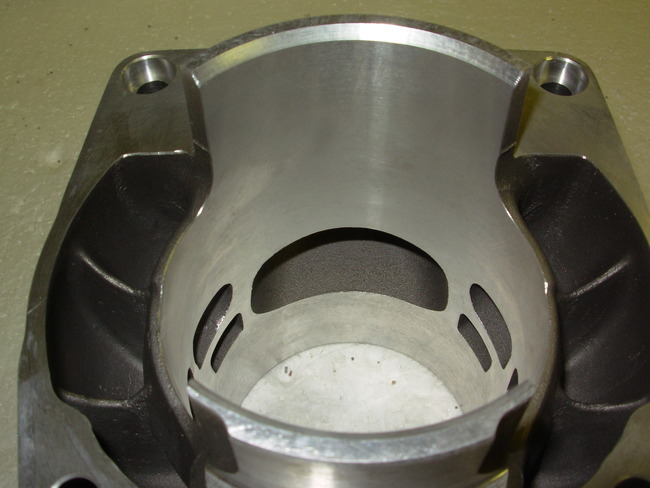

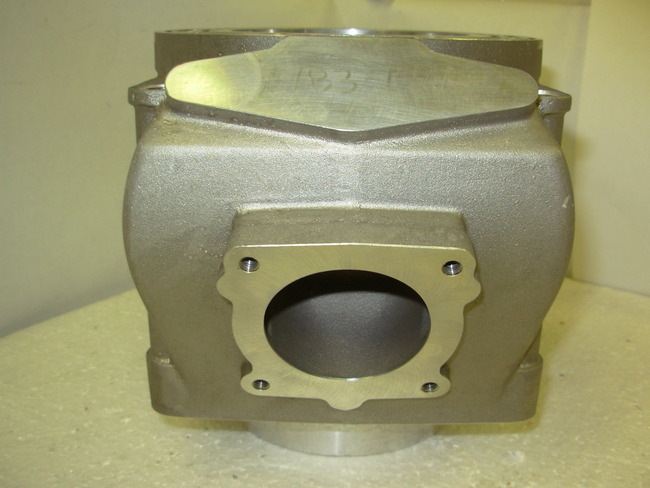

The "Liger" family of cylinders are our largest 2-stroke cylinders to date. We have started with a 95mm bore in this design, and as soon as the new larger pistons are available, we could see bores as large as 106mm from this design. The CR-Liger cylinders are designed to be used with a bolt-on adapter plate to minimize case modifications and still allow the transfer tunnel size to be increased and repositioned for optimum performance increases.

Pictures

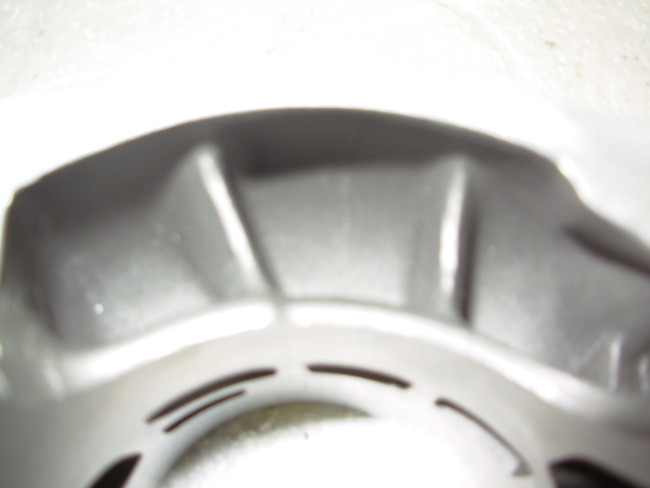

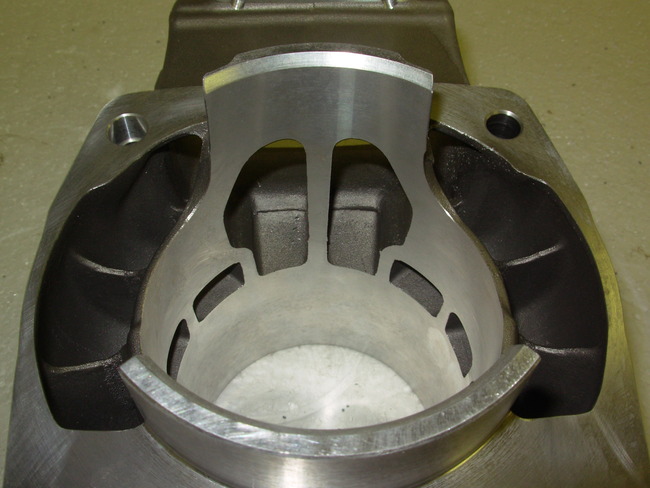

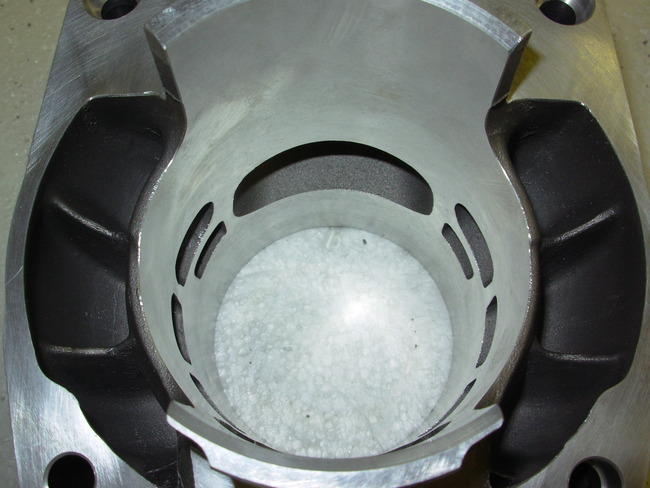

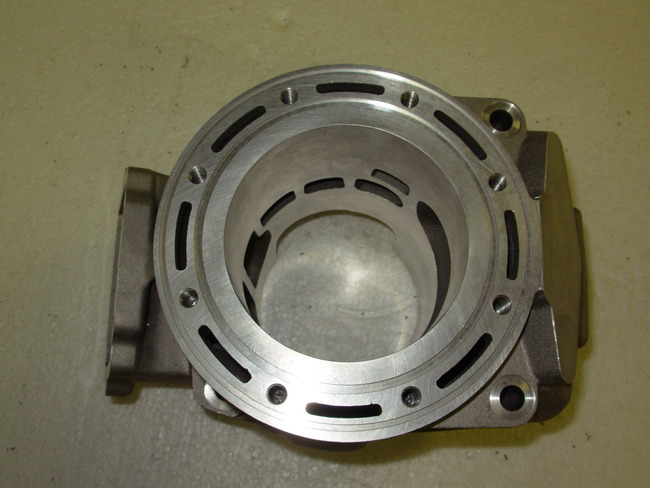

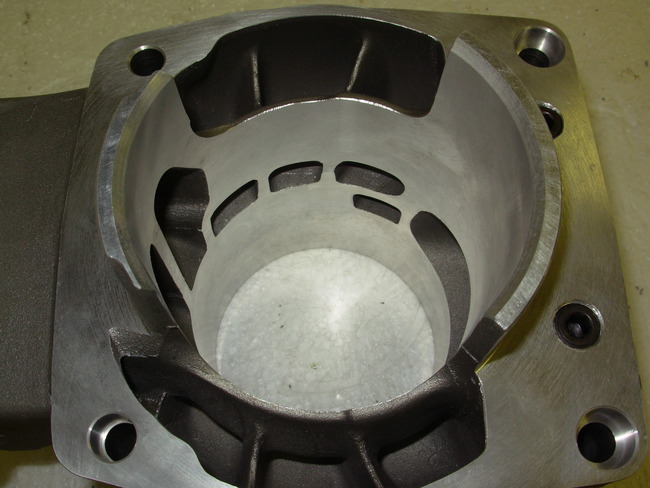

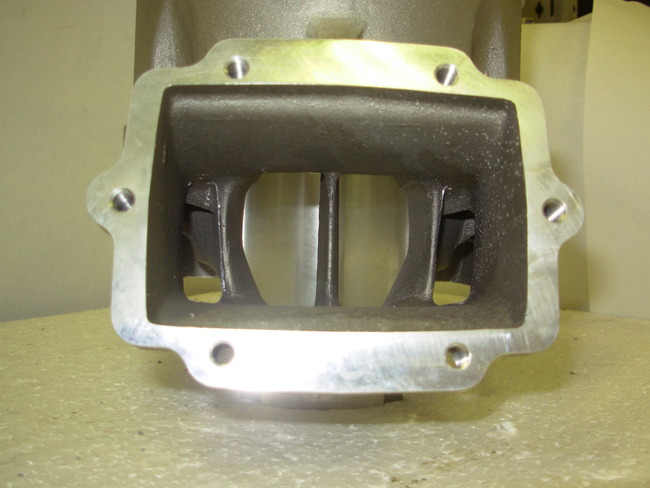

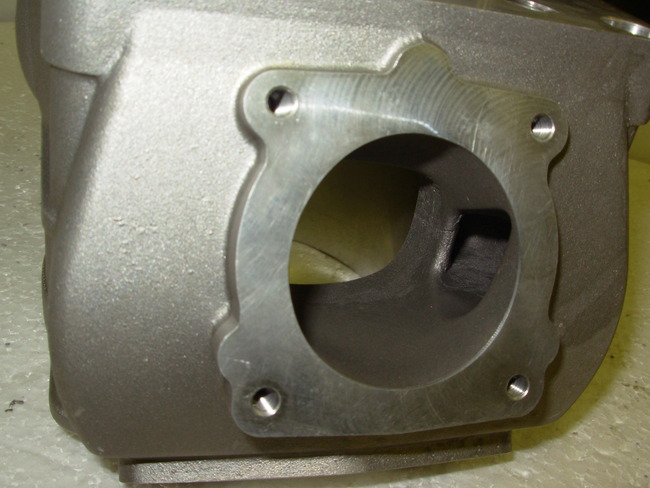

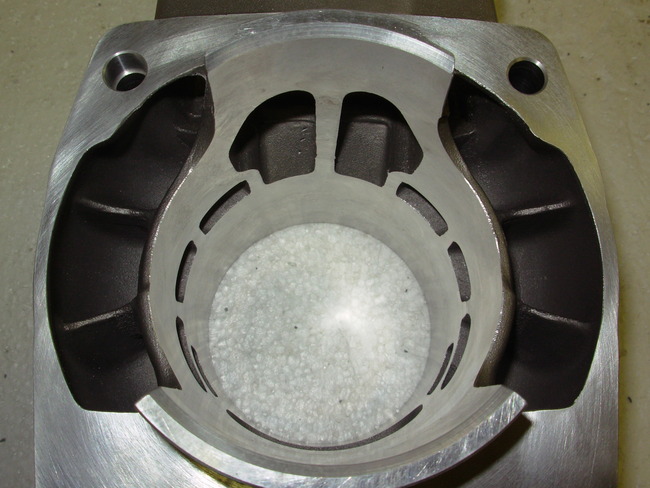

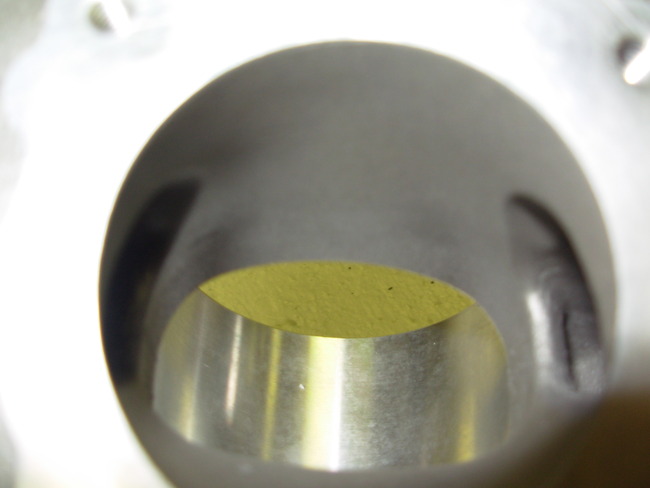

Pictures_of_the_liger_002_thumbnail Pictures_of_the_liger_001_thumbnail Pictures_of_the_liger_003_thumbnail Pictures_of_the_liger_004_thumbnail Pictures_of_the_liger_005_thumbnail Pictures_of_the_liger_006_thumbnail Pictures_of_the_liger_007_thumbnail Pictures_of_the_liger_008_thumbnail Pictures_of_the_liger_009_thumbnail Pictures_of_the_liger_011_thumbnail Internals_of_the_liger_001_thumbnail Internals_of_the_liger_002_thumbnail Internals_of_the_liger_005_thumbnail Internals_of_the_liger_006_thumbnail Internals_of_the_liger_007_thumbnail Internals_of_the_liger_009_thumbnail Internals_of_the_liger_010_thumbnail Internals_of_the_liger_008_thumbnail Internals_of_the_liger_004_thumbnail Internals_of_the_liger_003_thumbnail Pictures_of_the_liger_010_thumbnail Pictures_of_the_liger_004_thumbnail Liger_004_thumbnail
